チャートに表示するデータが負数である場合に赤字で表示したい – MESCIUS ナレッジベース

作成日: 2022/10/20 最終更新日: 2022/10/20

文書種別

技術情報

詳細

SPREAD for Windows Forms 15.0Jでは、チャートの数値軸（ValueAxisクラス）およびデータラベル（Series クラス）で、値が負数の場合に自動的に赤字で表示することができるLabelNegativeRedプロパティが追加されました。 LabelNegativeRedプロパティをTrueに設定することで、以下のように負数を赤字で表示することができます。

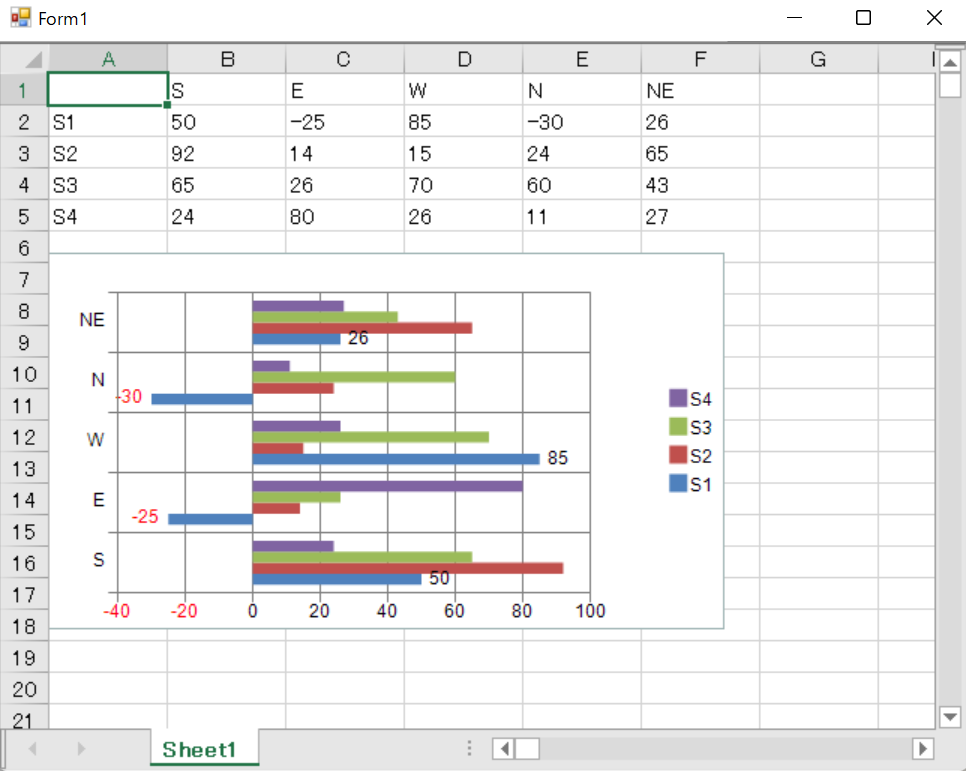

＜実行イメージ＞

◎サンプルコード(VB)

Public Class Form1
Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
   ' テストデータの設定
   Dim sheet As FarPoint.Win.Spread.SheetView = FpSpread1.Sheets(0)
   sheet.SetClipValue(0, 1, 1, 5, "S" & vbTab & "E" & vbTab & "W" & vbTab & "N" & vbTab & "NE")
   sheet.SetClipValue(1, 0, 1, 6, "S1" & vbTab & "50" & vbTab & "-25" & vbTab & "85" & vbTab & "-30" & vbTab & "26")
   sheet.SetClipValue(2, 0, 1, 6, "S2" & vbTab & "92" & vbTab & "14" & vbTab & "15" & vbTab & "24" & vbTab & "65")
   sheet.SetClipValue(3, 0, 1, 6, "S3" & vbTab & "65" & vbTab & "26" & vbTab & "70" & vbTab & "60" & vbTab & "43")
   sheet.SetClipValue(4, 0, 1, 6, "S4" & vbTab & "24" & vbTab & "80" & vbTab & "26" & vbTab & "11" & vbTab & "27")

   ' シリーズを作成
   Dim series1 As FarPoint.Win.Chart.BarSeries = New FarPoint.Win.Chart.BarSeries()
   series1.SeriesName = "s1"
   series1.SeriesNameDataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$2:$A$2", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series1.CategoryNames.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series1.Values.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$2:$F$2")
   ' データラベルの表示
   series1.LabelVisible = True
   ' 負数の赤字表示
   series1.LabelNegativeRed = True

   Dim series2 As FarPoint.Win.Chart.BarSeries = New FarPoint.Win.Chart.BarSeries()
   series2.SeriesName = "s2"
   series2.SeriesNameDataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$3:$A$3", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series2.CategoryNames.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series2.Values.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$3:$F$3")

   Dim series3 As FarPoint.Win.Chart.BarSeries = New FarPoint.Win.Chart.BarSeries()
   series3.SeriesName = "s3"
   series3.SeriesNameDataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$4:$A$4", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series3.CategoryNames.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series3.Values.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$4:$F$4")

   Dim series4 As FarPoint.Win.Chart.BarSeries = New FarPoint.Win.Chart.BarSeries()
   series4.SeriesName = "s4"
   series4.SeriesNameDataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$5:$A$5", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series4.CategoryNames.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text)
   series4.Values.DataSource = New FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$5:$F$5")

   Dim barSeries As FarPoint.Win.Chart.ClusteredBarSeries = New FarPoint.Win.Chart.ClusteredBarSeries()
   barSeries.Series.AddRange(New FarPoint.Win.Chart.BarSeries() {series1, series2, series3, series4})

   ' プロット領域を作成
   Dim plotArea As FarPoint.Win.Chart.YPlotArea = New FarPoint.Win.Chart.YPlotArea()
   plotArea.Location = New System.Drawing.PointF(0.1F, 0.1F)
   plotArea.Size = New System.Drawing.SizeF(0.7F, 0.8F)
   plotArea.XAxis.MajorGridVisible = True
   plotArea.Vertical = False
   ' 負数の赤字表示
   plotArea.YAxes(0).LabelNegativeRed = True
   plotArea.Series.AddRange(New FarPoint.Win.Chart.Series() {barSeries})

   ' 凡例を設定
   Dim legend As FarPoint.Win.Chart.LegendArea = New FarPoint.Win.Chart.LegendArea()
   legend.Location = New System.Drawing.PointF(0.995F, 0.5F)
   legend.AlignmentX = 1.0F
   legend.AlignmentY = 0.5F

   ' チャートモデルに各情報を追加
   Dim model As FarPoint.Win.Chart.ChartModel = New FarPoint.Win.Chart.ChartModel()
   model.LegendAreas.Add(legend)
   model.PlotAreas.Add(plotArea)

   ' SPREADチャートにチャートモデルを設定
   Dim chart As FarPoint.Win.Spread.Chart.SpreadChart = New FarPoint.Win.Spread.Chart.SpreadChart()
   chart.Size = New Size(450, 250)
   chart.Location = New Point(0, 120)
   chart.Model = model

   ' シートにSPREADチャートを追加
   sheet.Charts.Add(chart)
End Sub
End Class

◎サンプルコード(C#)

private void Form1_Load(object sender, EventArgs e)
{
   FarPoint.Win.Spread.SheetView sheet = fpSpread1.Sheets[0];

   // テストデータの設定
   sheet.SetClipValue(0, 1, 1, 5, "S\tE\tW\tN\tNE");
   sheet.SetClipValue(1, 0, 1, 6, "S1\t50\t-25\t85\t-30\t26");
   sheet.SetClipValue(2, 0, 1, 6, "S2\t92\t14\t15\t24\t65");
   sheet.SetClipValue(3, 0, 1, 6, "S3\t65\t26\t70\t60\t43");
   sheet.SetClipValue(4, 0, 1, 6, "S4\t24\t80\t26\t11\t27");

   // シリーズを作成
   FarPoint.Win.Chart.BarSeries series1 = new FarPoint.Win.Chart.BarSeries();
   series1.SeriesName = "s1";
   series1.SeriesNameDataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$2:$A$2", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series1.CategoryNames.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series1.Values.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$2:$F$2");
   // データラベルの表示
   series1.LabelVisible = true;
   // 負数の赤字表示
   series1.LabelNegativeRed = true;

   FarPoint.Win.Chart.BarSeries series2 = new FarPoint.Win.Chart.BarSeries();
   series2.SeriesName = "s2";
   series2.SeriesNameDataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$3:$A$3", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series2.CategoryNames.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series2.Values.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$3:$F$3");

   FarPoint.Win.Chart.BarSeries series3 = new FarPoint.Win.Chart.BarSeries();
   series3.SeriesName = "s3";
   series3.SeriesNameDataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$4:$A$4", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series3.CategoryNames.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series3.Values.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$4:$F$4");

   FarPoint.Win.Chart.BarSeries series4 = new FarPoint.Win.Chart.BarSeries();
   series4.SeriesName = "s4";
   series4.SeriesNameDataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldSeriesName", "Sheet1!$A$5:$A$5", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series4.CategoryNames.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldCategoryName", "Sheet1!$B$1:$F$1", FarPoint.Win.Spread.Chart.SegmentDataType.Text);
   series4.Values.DataSource = new FarPoint.Win.Spread.Chart.SeriesDataField(sheet.FpSpread, "DataFieldValue", "Sheet1!$B$5:$F$5");

   FarPoint.Win.Chart.ClusteredBarSeries barSeries = new FarPoint.Win.Chart.ClusteredBarSeries();
   barSeries.Series.AddRange(new FarPoint.Win.Chart.BarSeries[] { series1, series2, series3, series4 });

   // プロット領域を作成
   FarPoint.Win.Chart.YPlotArea plotArea = new FarPoint.Win.Chart.YPlotArea();
   plotArea.Location = new System.Drawing.PointF(0.1f, 0.1f);
   plotArea.Size = new System.Drawing.SizeF(0.7f, 0.8f);
   plotArea.XAxis.MajorGridVisible = true;
   plotArea.Vertical = false;
   // 負数の赤字表示
   plotArea.YAxes[0].LabelNegativeRed = true;
   plotArea.Series.AddRange(new FarPoint.Win.Chart.Series[] { barSeries });

   // 凡例を設定
   FarPoint.Win.Chart.LegendArea legend = new FarPoint.Win.Chart.LegendArea();
   legend.Location = new System.Drawing.PointF(0.995f, 0.5f);
   legend.AlignmentX = 1f;
   legend.AlignmentY = 0.5f;

   // チャートモデルに各情報を追加
   FarPoint.Win.Chart.ChartModel model = new FarPoint.Win.Chart.ChartModel();
   model.LegendAreas.Add(legend);
   model.PlotAreas.Add(plotArea);

   // SPREADチャートにチャートモデルを設定
   FarPoint.Win.Spread.Chart.SpreadChart chart = new FarPoint.Win.Spread.Chart.SpreadChart();
   chart.Size = new Size(450, 250);
   chart.Location = new Point(0, 120);
   chart.Model = model;

   // シートにSPREADチャートを追加
   sheet.Charts.Add(chart);
}
